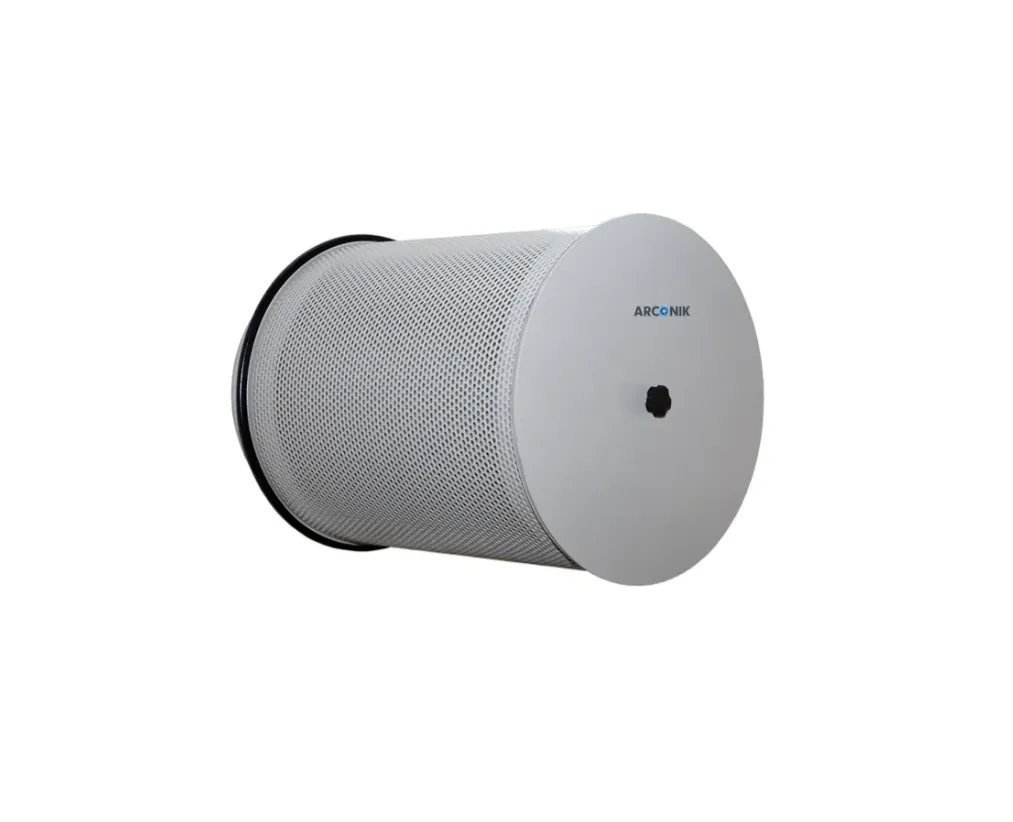

Explosion-proof open valves, 9 bars, Type X
If you're interested in this product, click the button below to book a consultation!
To learn more, read the description below
Product description
With pre-filter and protective cover (without housing)
Explosion-proof valves are protective devices that remain open under normal conditions. This allows air to flow freely in both directions - in and out of the protected space. They are usually installed on vents or ducts in ventilation systems. Their main task is to protect the shelter spaces, structures against the pressure waves, both positive and negative, generated by the explosion.
Pieejamie BVNO atvērto sprādziendrošo vārstu modeļi:
BVNO 50 - nominal air flow: 50 m³/h at 200 Pa
BVNO 550 – nominal air flow: 550 m³/h at 200 Pa
BVNO 600 – nominal air flow: 600 m³/h at 200 Pa
BVNO 1000 – nominal air flow: 1000 m³/h at 200 Pa
BVNO 1800 – nominal air flow: 1800 m³/h at 200 Pa
BVNO 2600 – nominal air flow: 2600 m³/h at 200 Pa
BVNO 2900 – nominal air flow: 2900 m³/h at 200 Pa
Technical specifications for explosion-proof valves:
Resistance to back pressure: >900 kPa (9 bar)
Mechanical shock resistance: >12 g
Values apply to version Y (safety valve only).

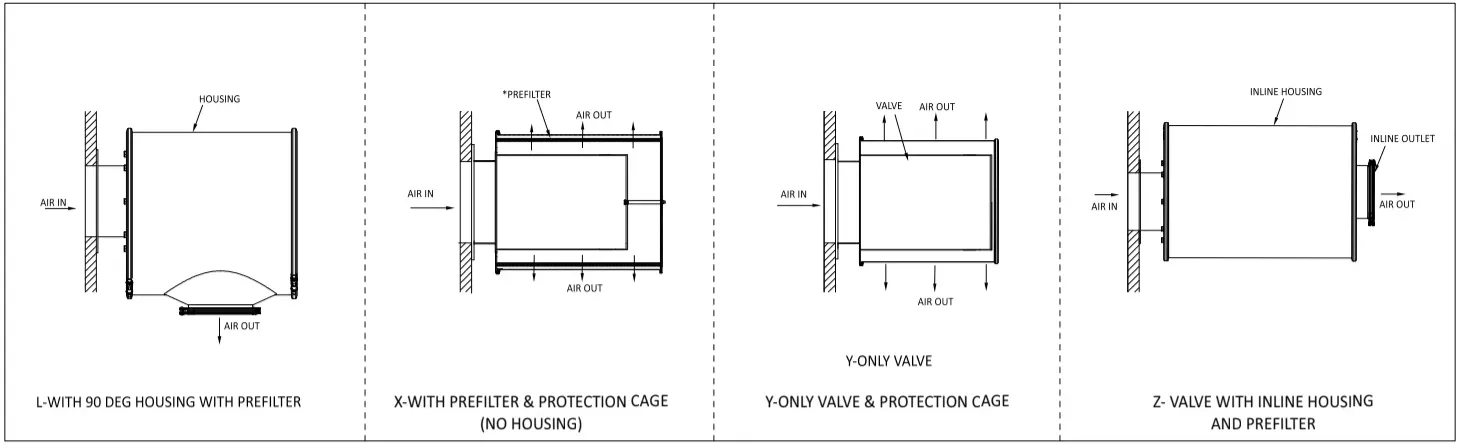

BVNO valves can be customised to suit individual needs, for example by fitting them with a body that connects to the duct, as well as flanges, pre-filters or quick connectors. In addition, such customisation makes it easier to integrate existing ventilation systems. This allows BVNO valves to meet different requirements, both in terms of installation and specific operating conditions.
