Mobile shelter Compact 3
Price on request
Interested in this model? Request a consultation — we will get in touch and help you choose the right solution.
Description
Mobile shelters of this type are most often used when refuge needs to be found quickly for a short period. The mobile shelter is designed to protect the lives of civilians in the event of war or other threats.
The shelter is a mobile structure and can be transported by truck without additional permits.
Product description
Compact 3 shelters are divided into three protection categories:
- Structure clad with steel sheet. (intended for indoor use)

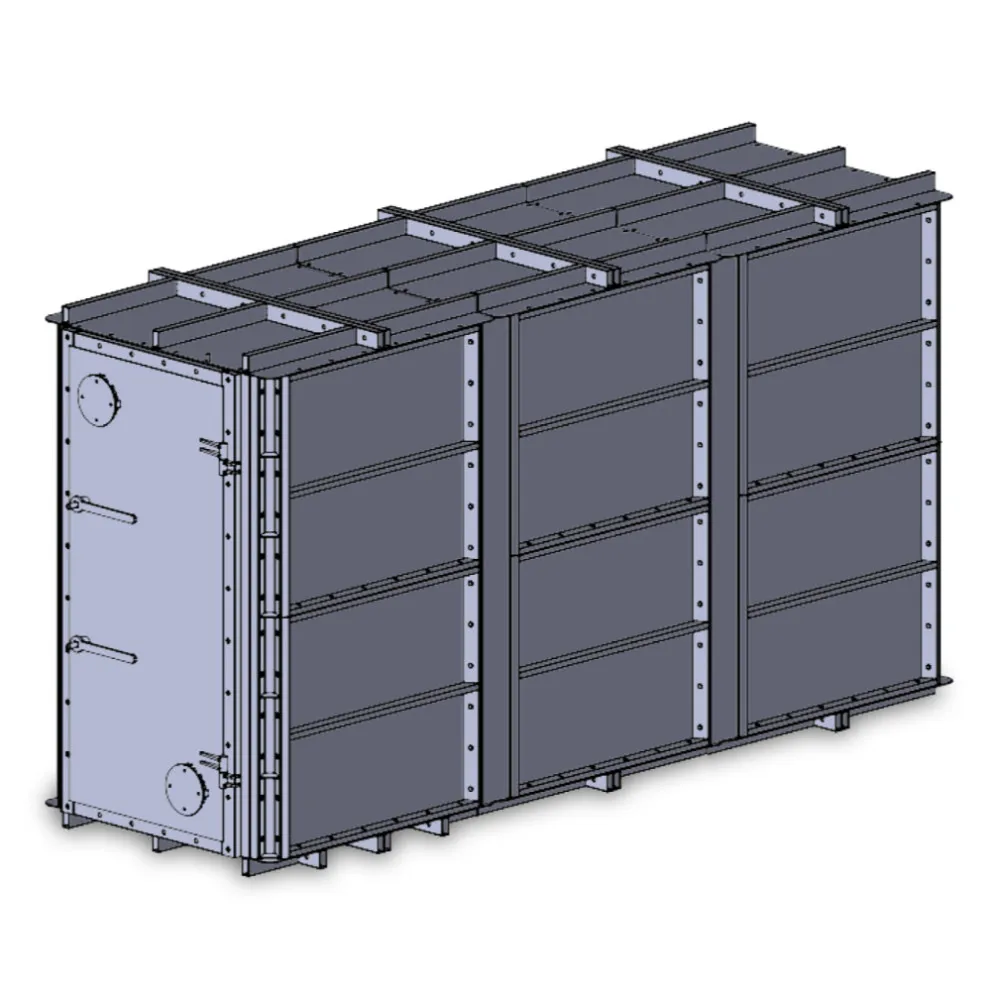

The shelter frame is made of 3 mm thick profile tube and the inner wall of 6 mm steel sheet.
The shelter's metal structure can be delivered disassembled. We offer to assemble the metal structure on site.
- Structure clad with steel sheet and an embedded reinforced concrete slab.
(intended for outdoor use) The shelter frame is made of 3 mm thick profile tube, an inner wall made of 6 mm steel sheet, a 60 mm reinforced concrete slab (concrete class C35/45 + reinforcement D12 A500.

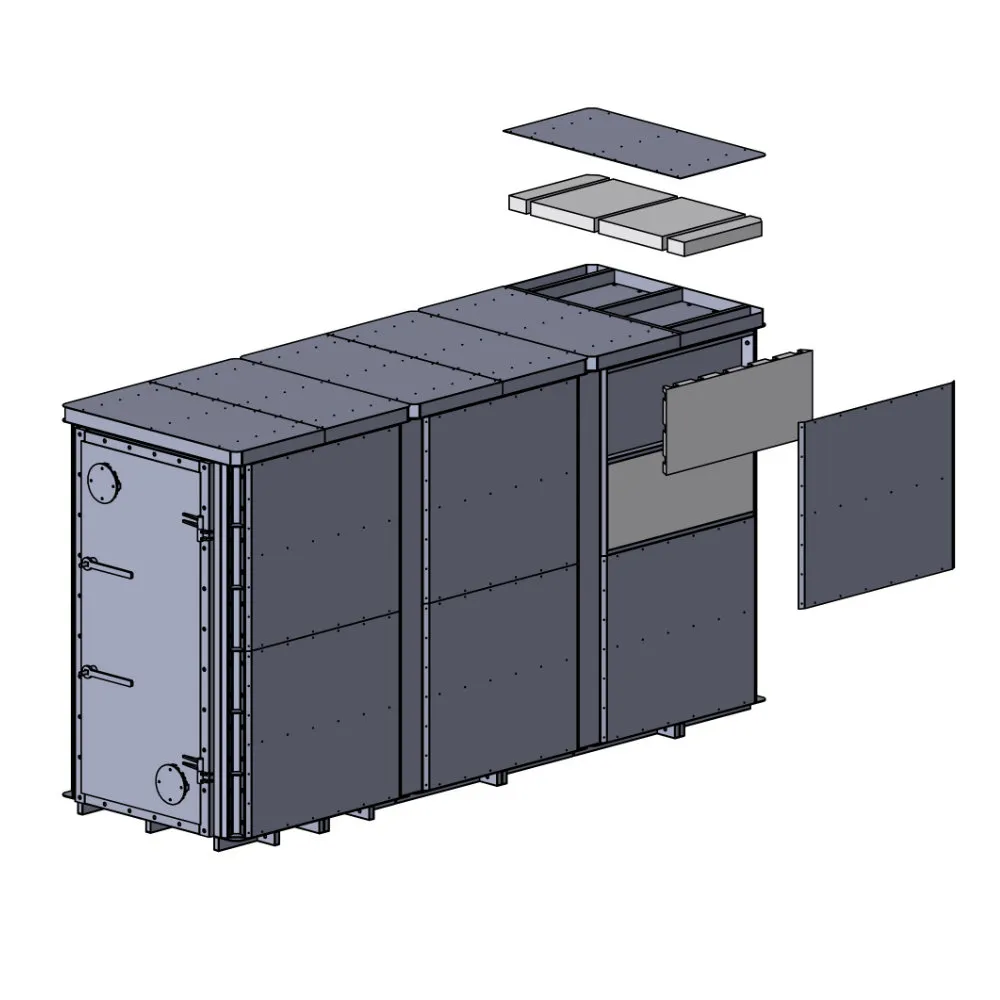

- Structure clad with steel sheet, an embedded reinforced concrete slab and clad with steel sheet on the outside. (intended for outdoor use)
The shelter frame is made of 3 mm thick profile tube, an inner wall made of 6 mm steel sheet, a 60 mm concrete slab (concrete class C35/45 + reinforcement D12 A500), and an outer wall made of 30 mm steel plate.
( steel-concrete-steel).
Description:
A shelter made of 6 mm steel sheet, 60 mm reinforced concrete
slab (concrete class C35/45 + reinforcement D12 A500. Protects against a blast wave pressure of 100 kPa, warhead fragments and other dangerous elements caused by the blast wave.
Robotic welding significantly improves welding quality. Module assembly is carried out using bolted connections with a diameter of 16 mm and strength class 5,8.
Suitable for installation in a house yard, in warehouses, and in industrial and commercial premises without a building permit.

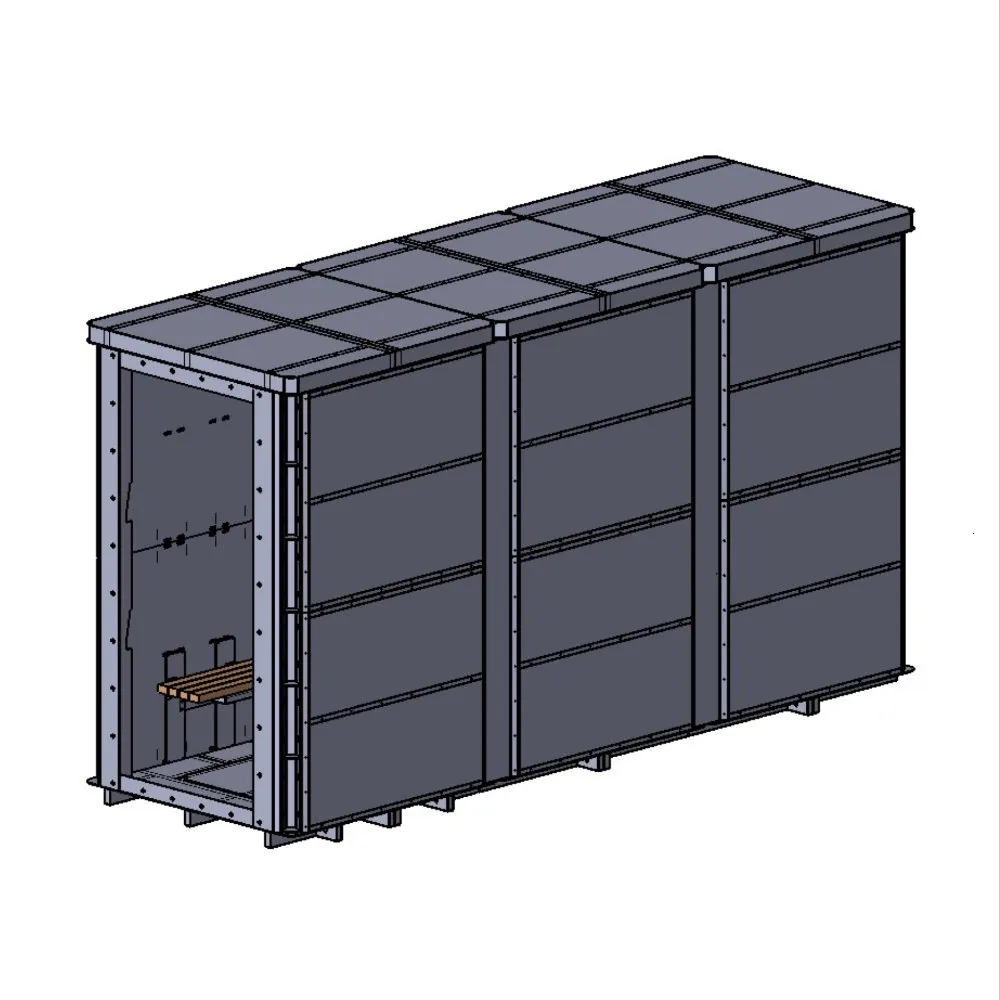

Shelter equipment: The Compact 3 shelter is equipped with natural ventilation, a noise-absorbing interior lining (felt fabric), benches for seating, a fire extinguisher, a universal first aid kit and autonomous lighting. On additional request, we equip it with a forced ventilation system; a video surveillance and electronic access system.
Technical specification
Width: 1400 mm
Length: 4362 mm
Height: 2332 mm
Usable area: 6,11 m²
Capacity: 12 people
